BBI Solutions - Water Collection System

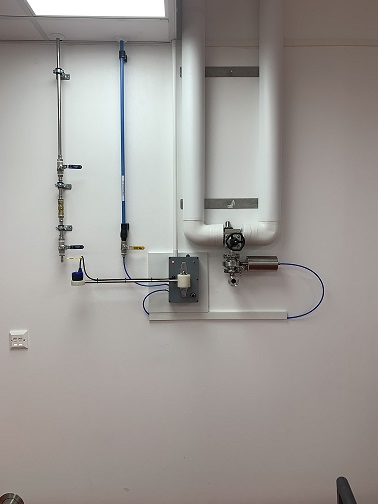

One of the filling station without a vessel in place

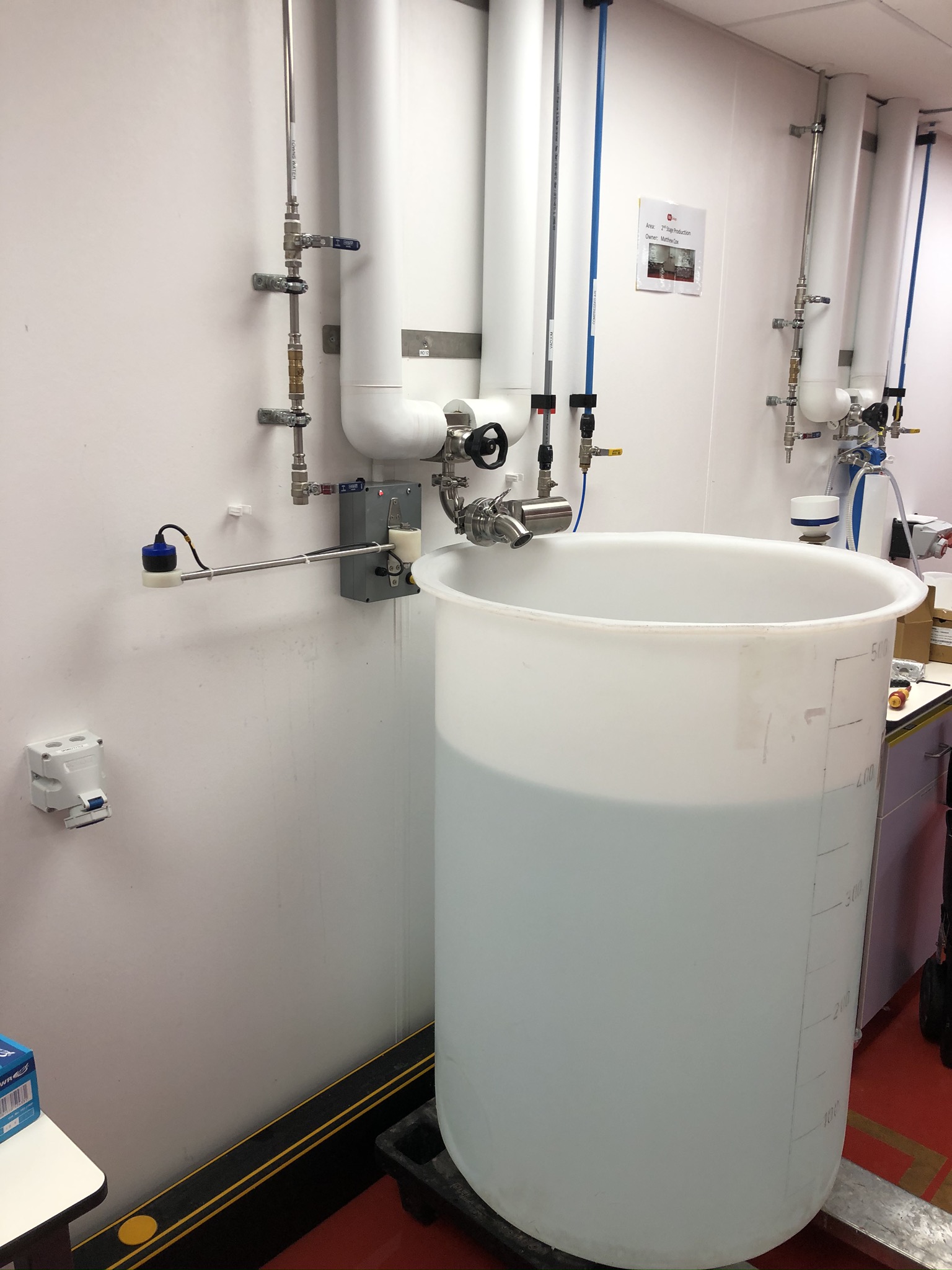

One of the filling stations shortly after a vessel was filled to the correct level

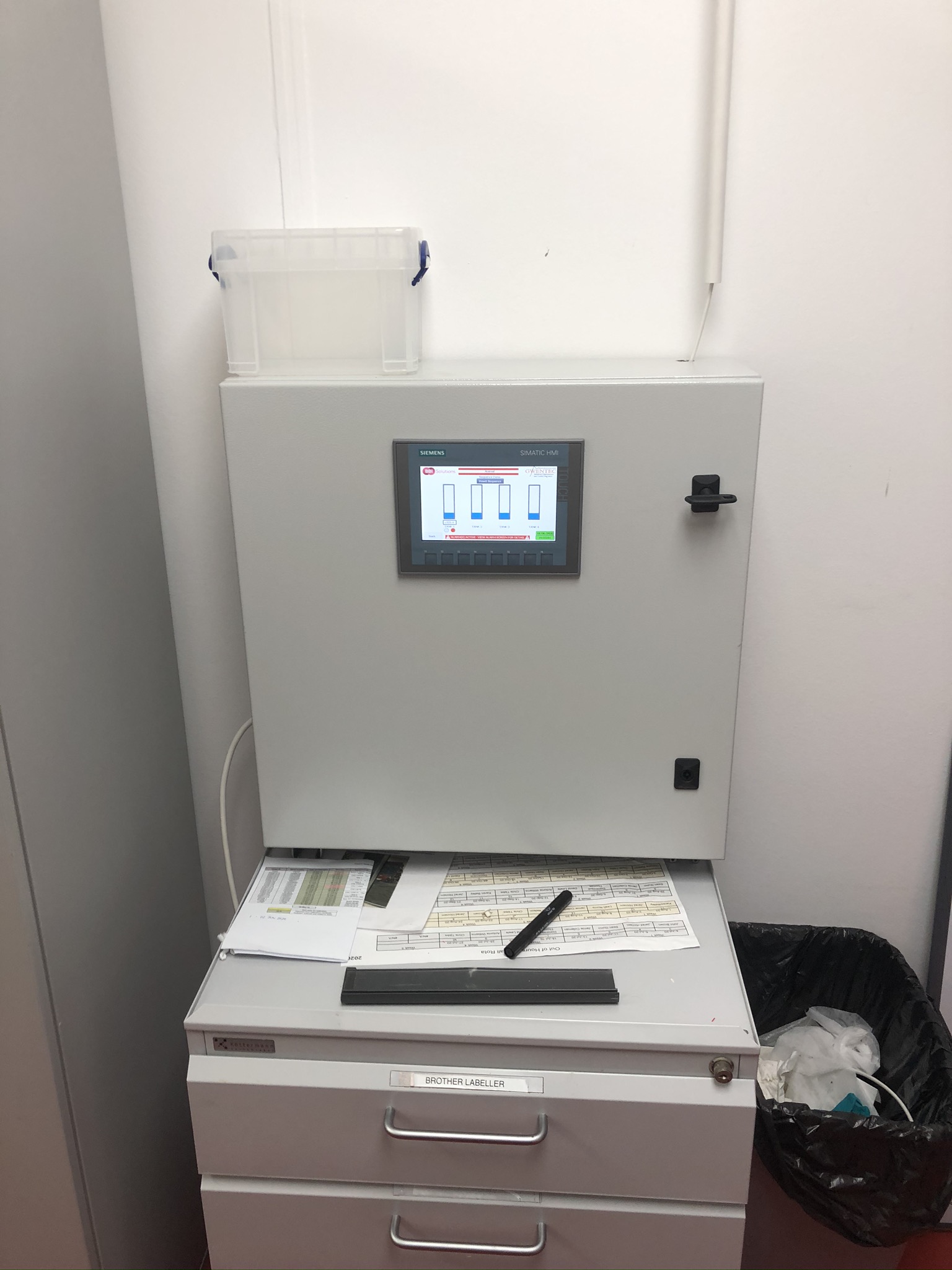

The office based electrical panel with HMI

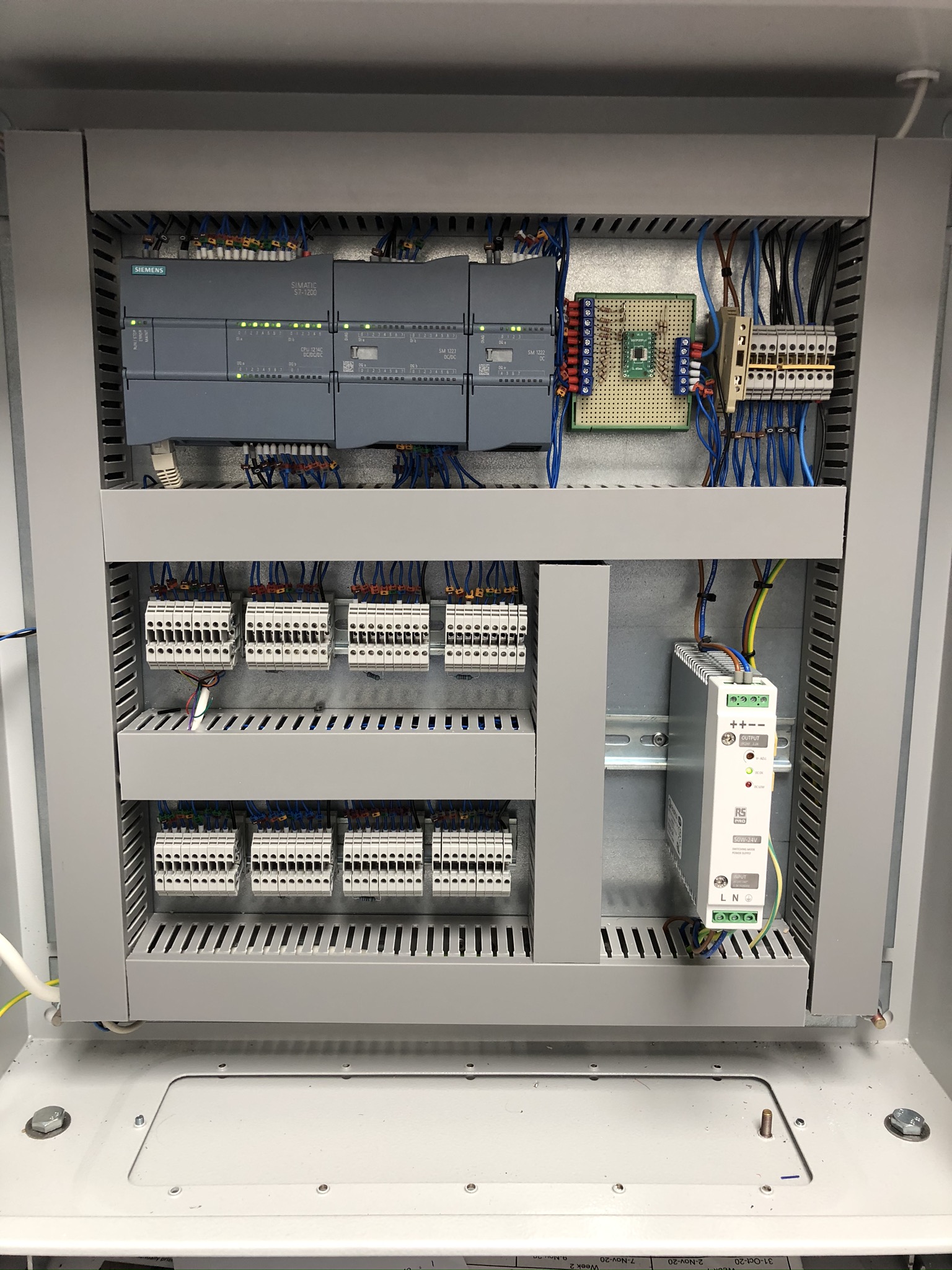

Inside the electrical panel

Gwentec were asked to create a system to automatically fill vessels with RO water to 400L without operator supervision during specifed times

The system comprised on 8 'Filling Stations' that previously existed but the operation was a manual process

Gwentec adapted the 8 'Filling Stations' by adding pneumatic operated valves, ultrasonic level measurement mounted to

a custom designed arm, vessel detection and local indication.

Each filling station was then connected to a central control panel mounted in an office area that contained a HMI so that

Tank levels and status can be monitored and alarms can be viewed and acknowledged

The system was later adapted to allow operator control over a network for remote access

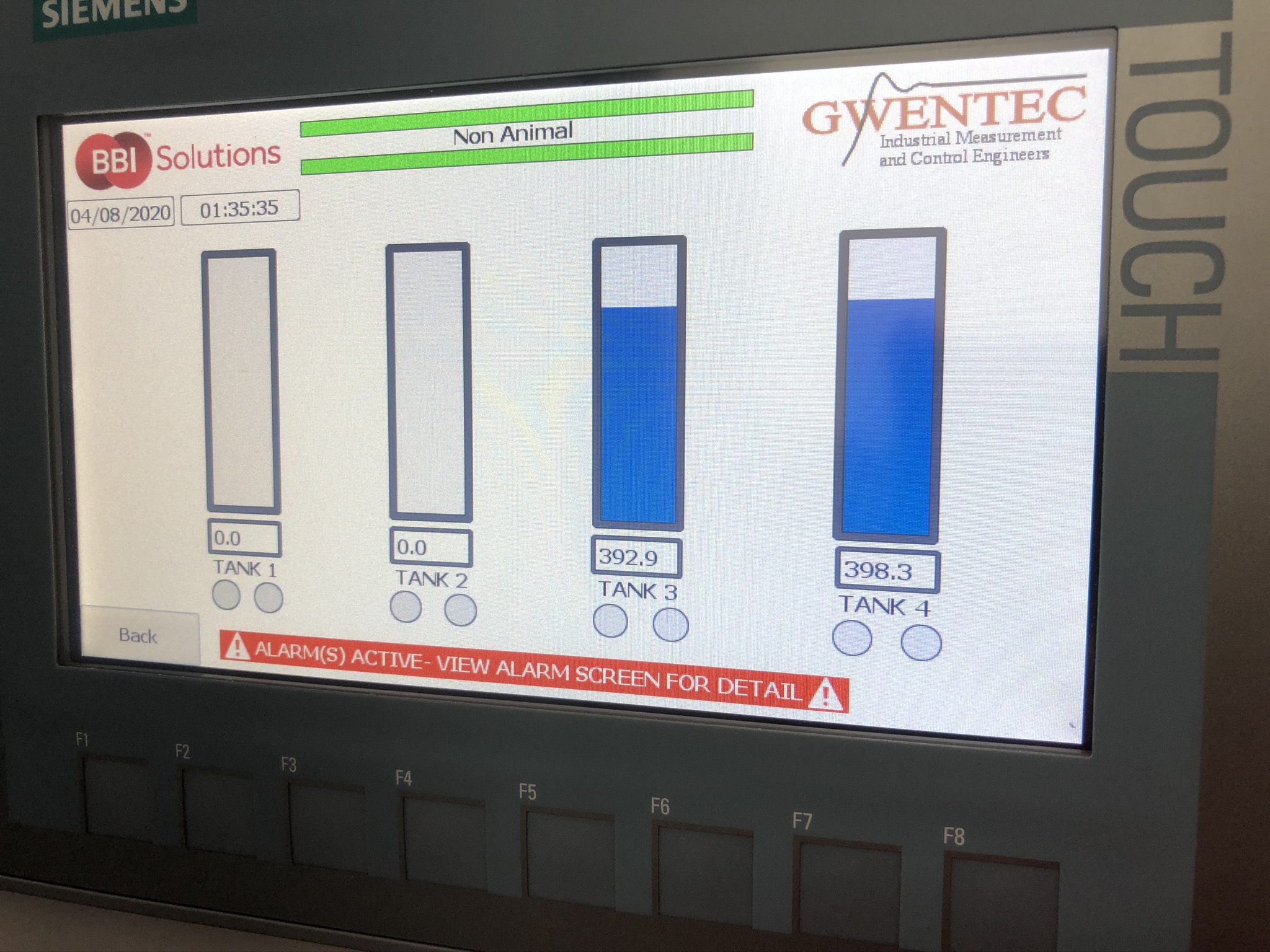

HMI screen showing tank level and status

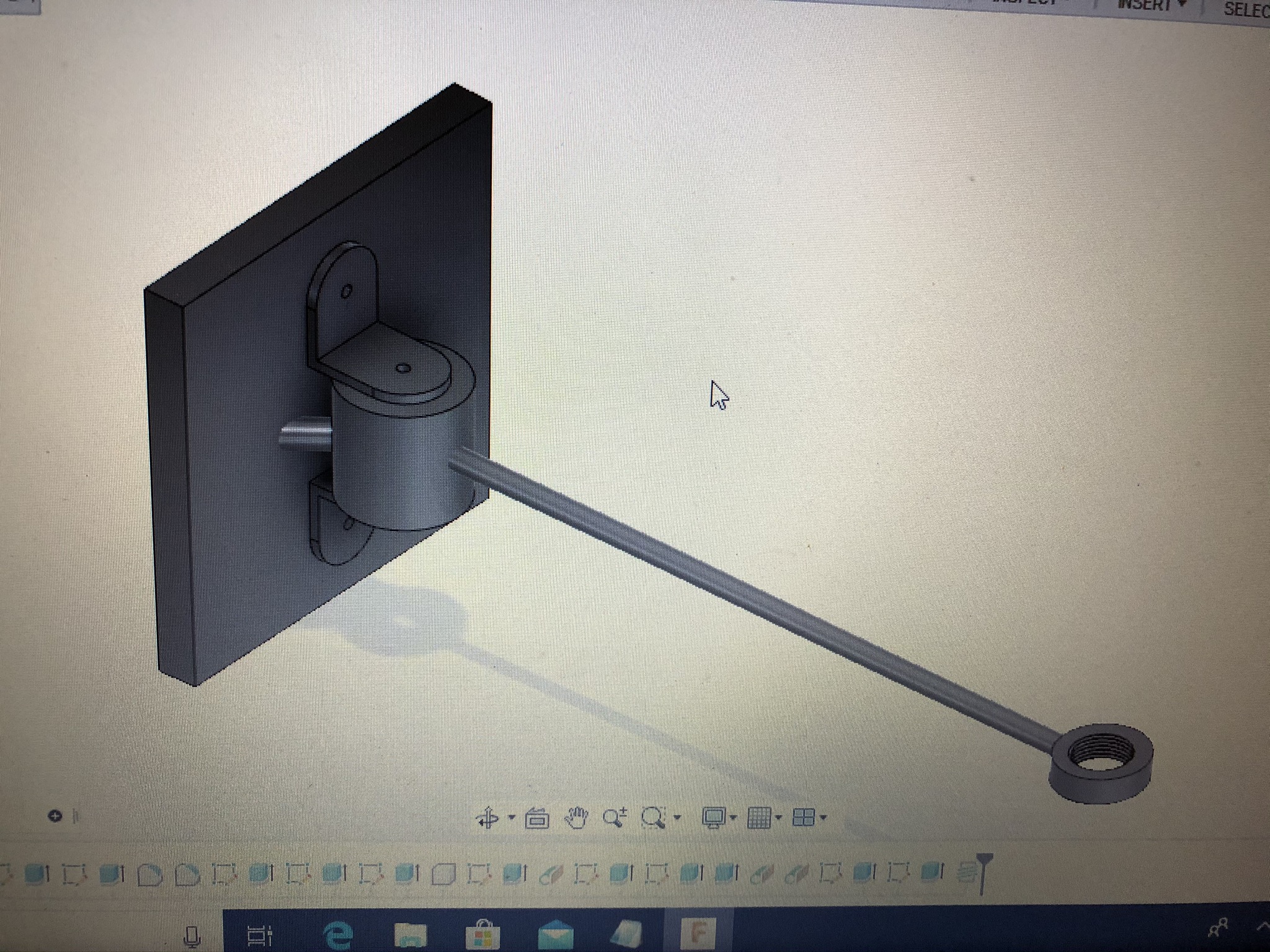

This is part of the early CAD designs for the custom fabricated arm for level measurement

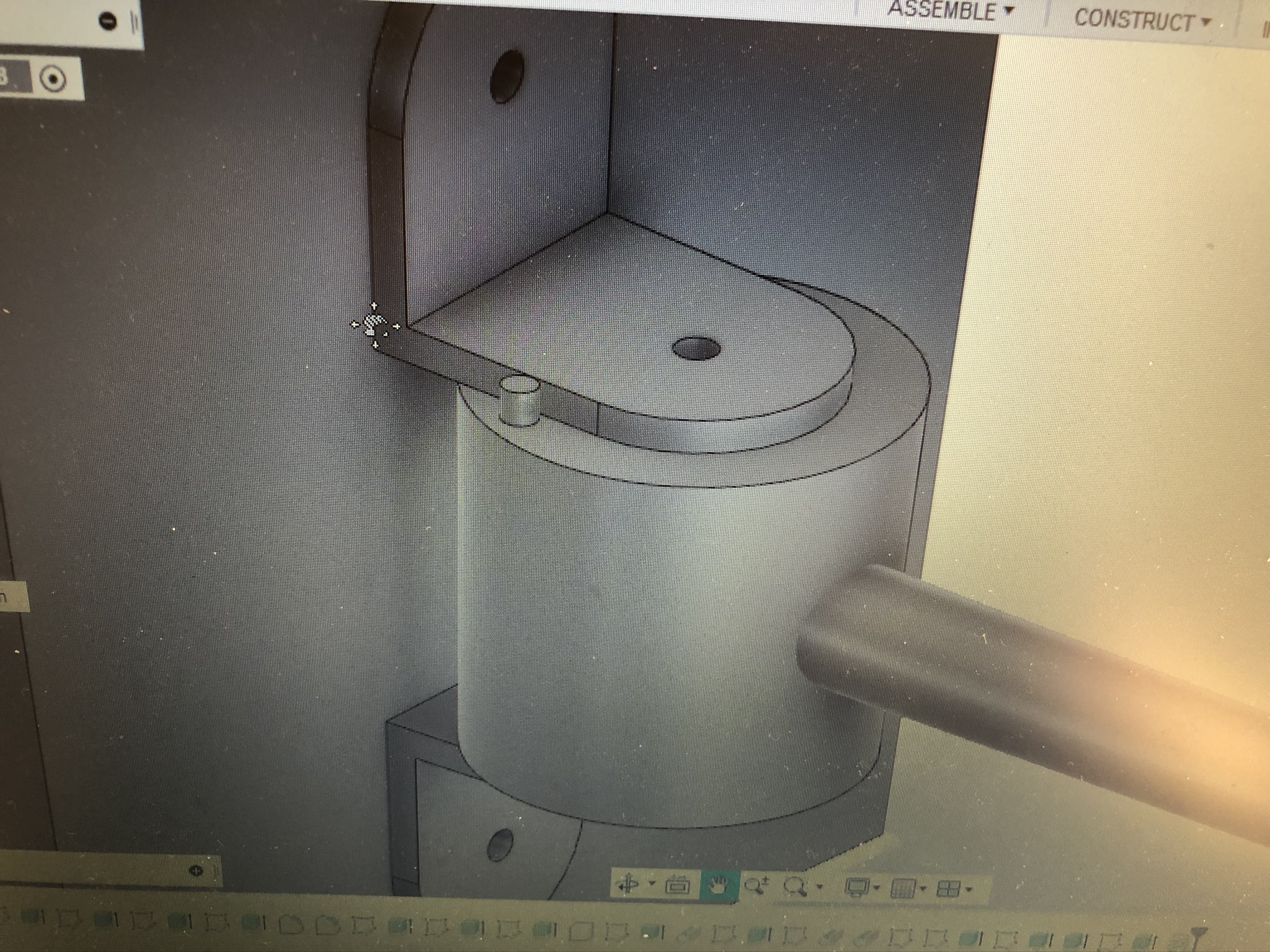

Close up of the CAD for the arm showing locking pin that stops the arm extending more than is needed
