ABP Barry - Central Control System

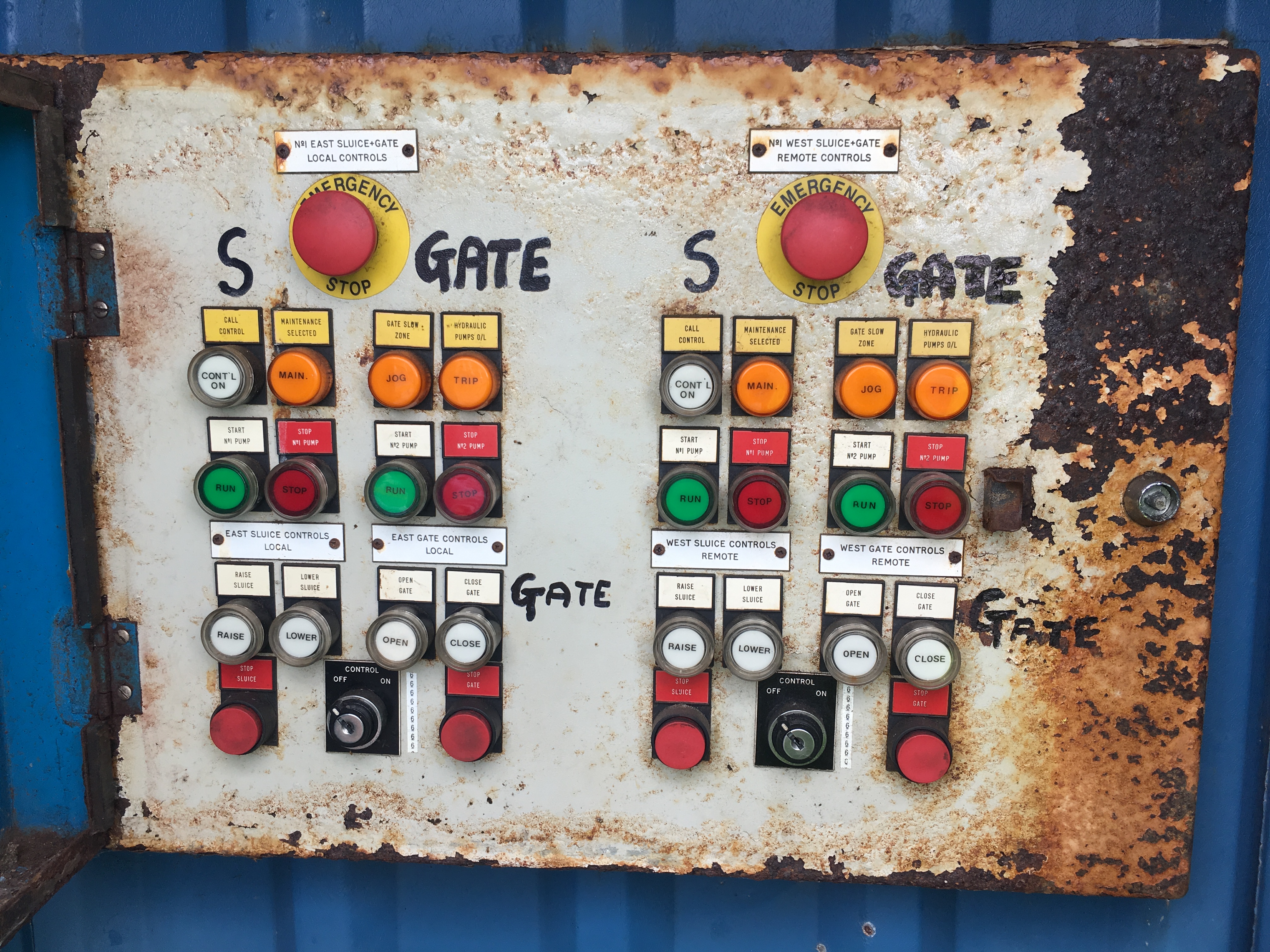

One the original control stations. These remain functional if the Gwentec system is isolated

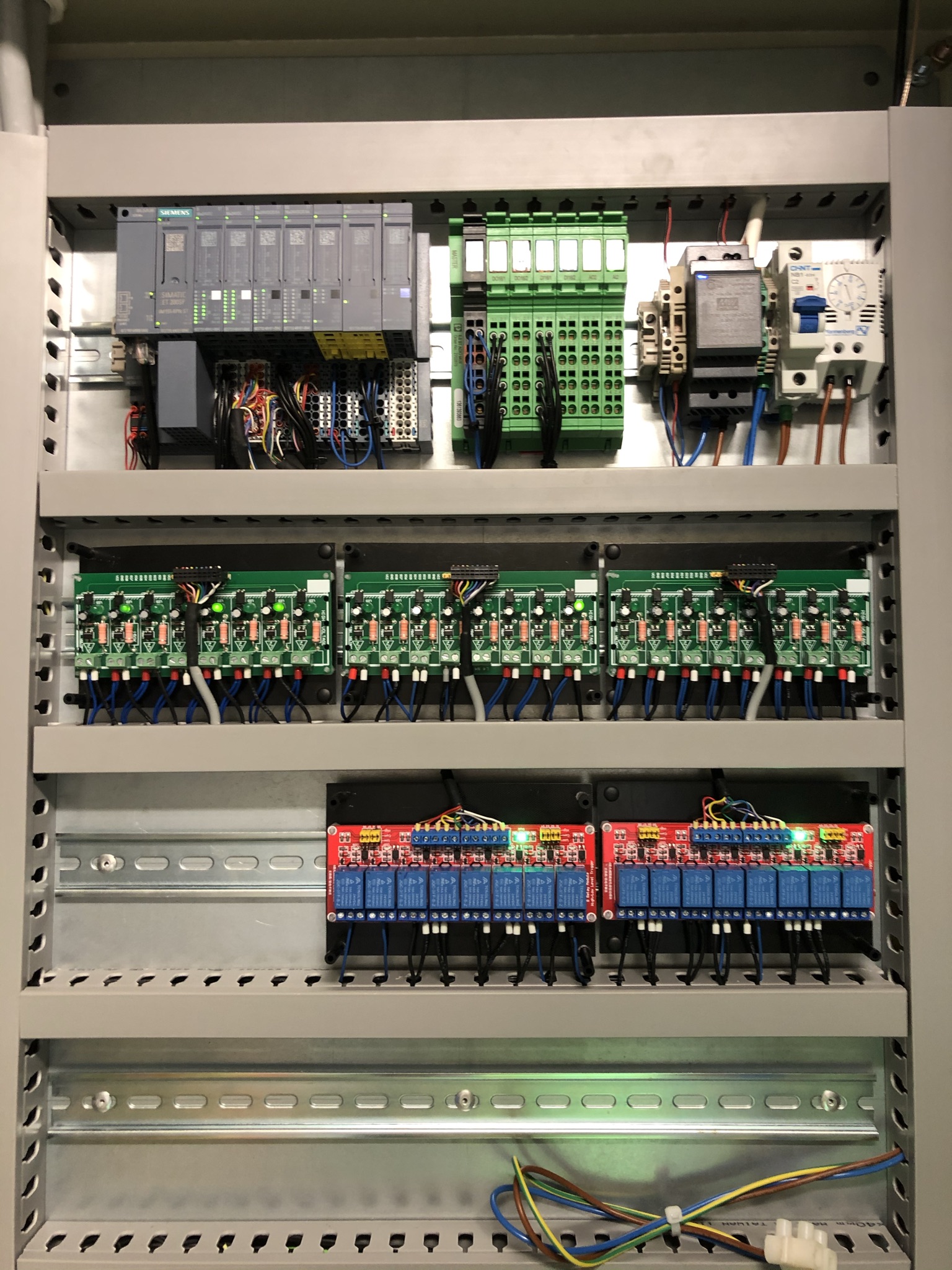

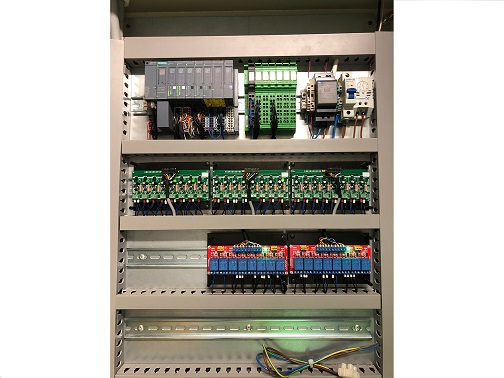

One of the Remote IO stations that are used to interface with the original controls and the new central control station

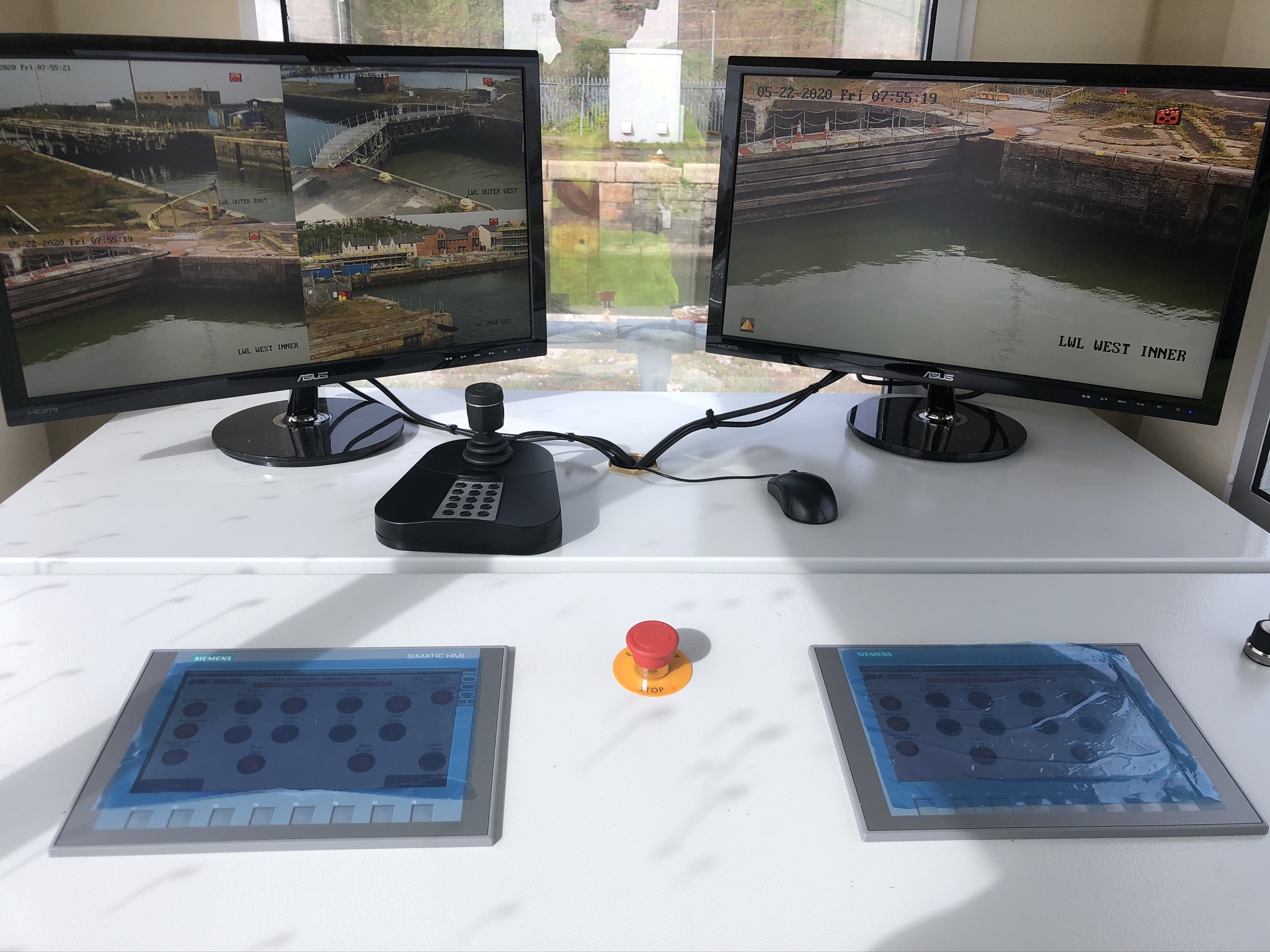

Central control desk that also has CCTV camera feeds installed next to the Gwentec system

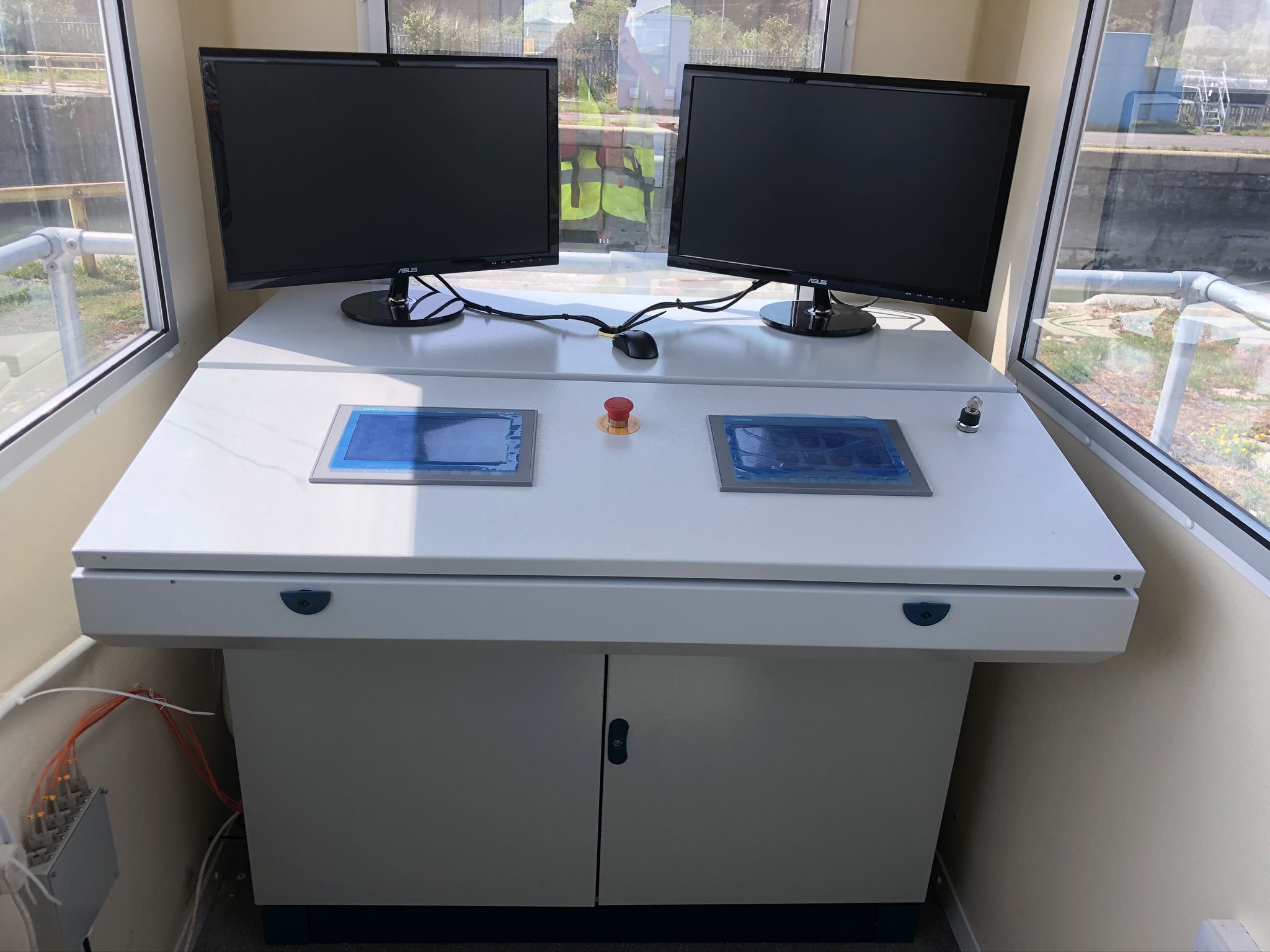

Close up of the powered up system. Dual HMIs allow the operator to control each leaf of the gates independently so that the controls are familiar to experienced operators

Gwentec were asked to install a central control system to allow an operator to operate the lock gates from a central control station

rather than an operator walking to each induvial control station as was done in the past which was time consuming

The system employed 4 remote IO stations that were connected over a fibre optic link to the central control station

The system retained the ability to locally operate induvial control systems as was done in the past for flexibility and redundancy

Profisafe was used to interface with existing emergency stop circuits which makes the new system compliant with modern safety standards

without compromising the safety of the original install

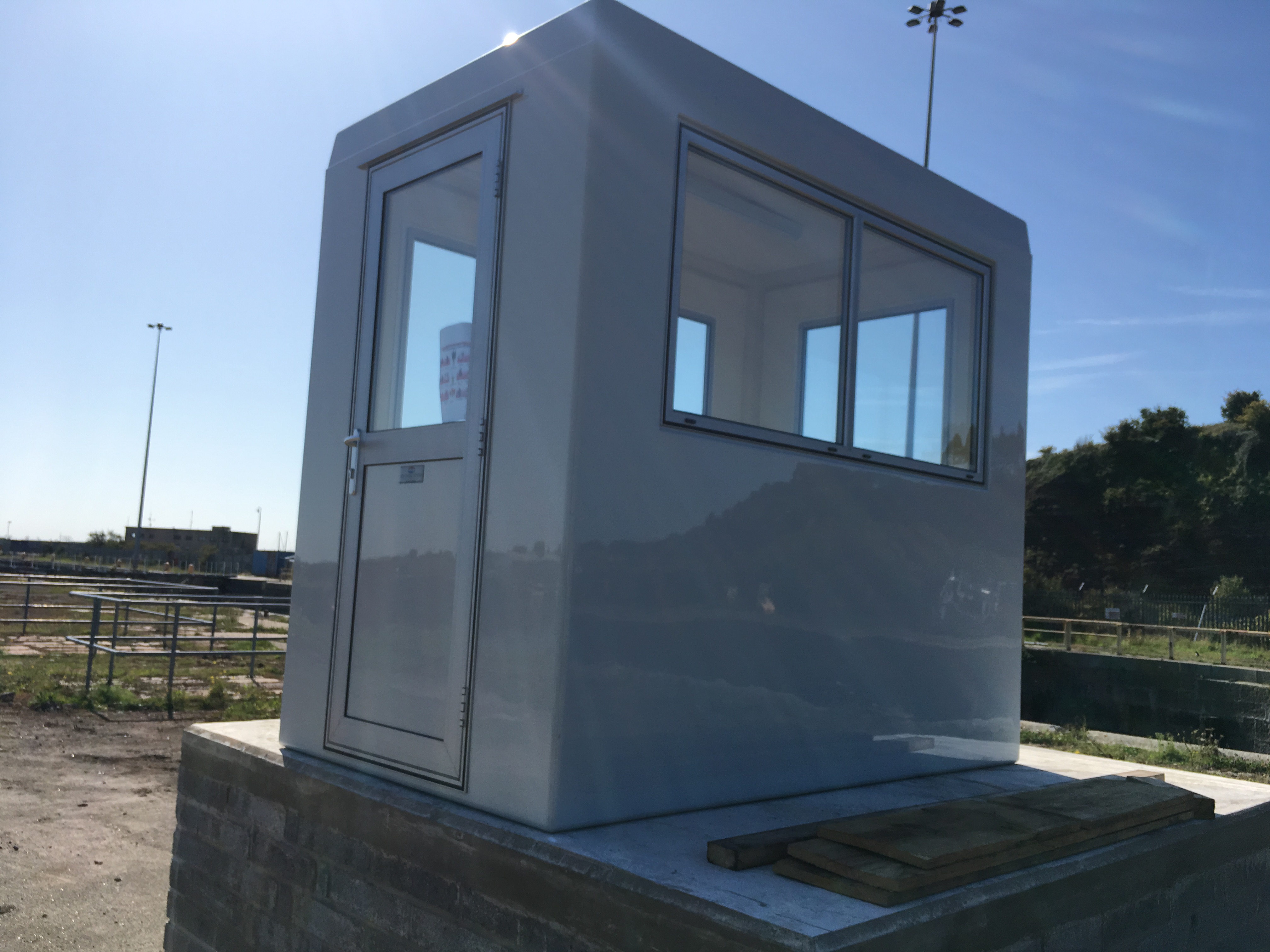

The central Hut that Gwentec supplied, the building was installed in a central location between the 4 lock gates. This photo was taken before the steps were installed by ABP.

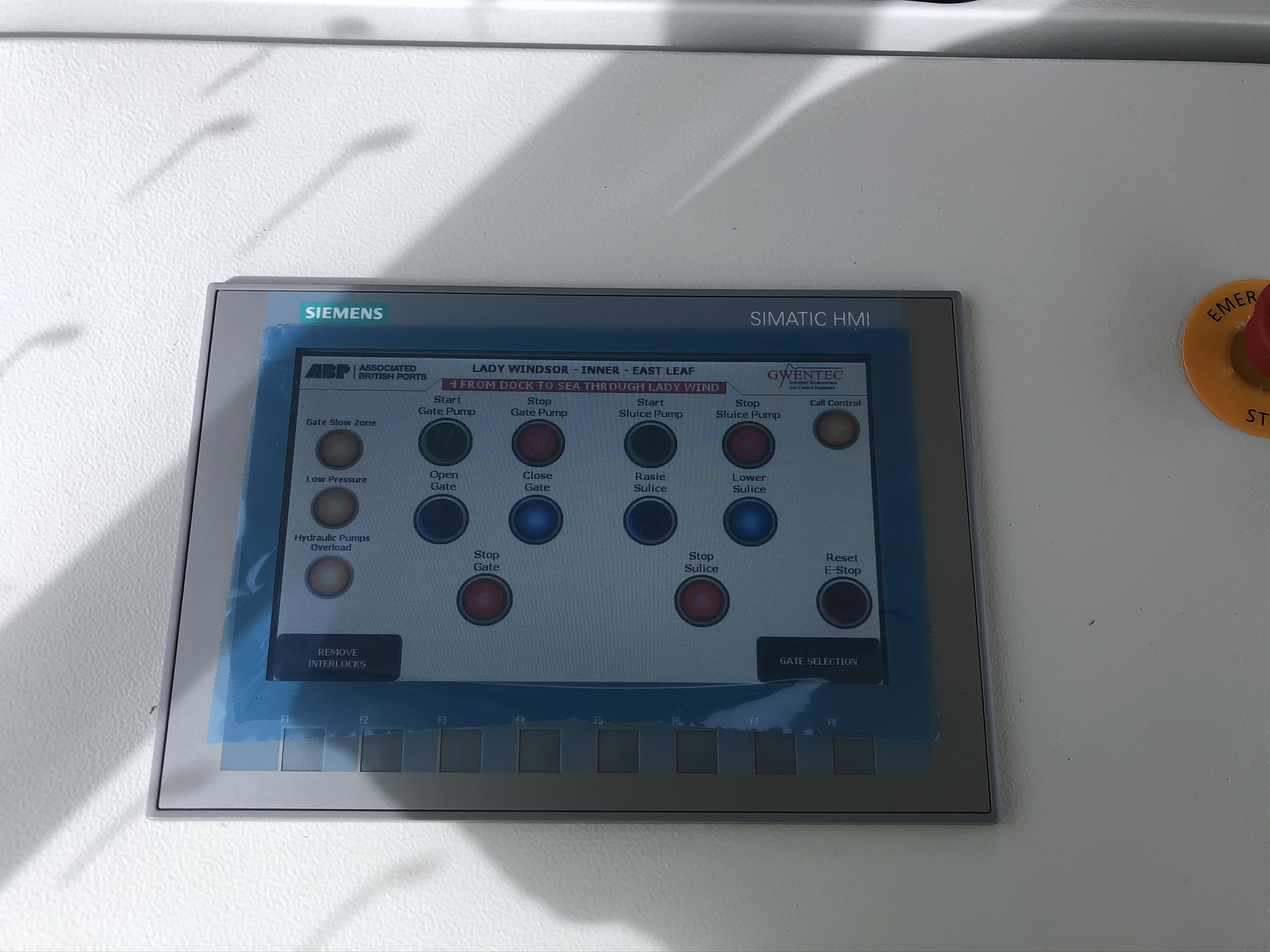

Close up of one of the HMI screens showing the control an operator has

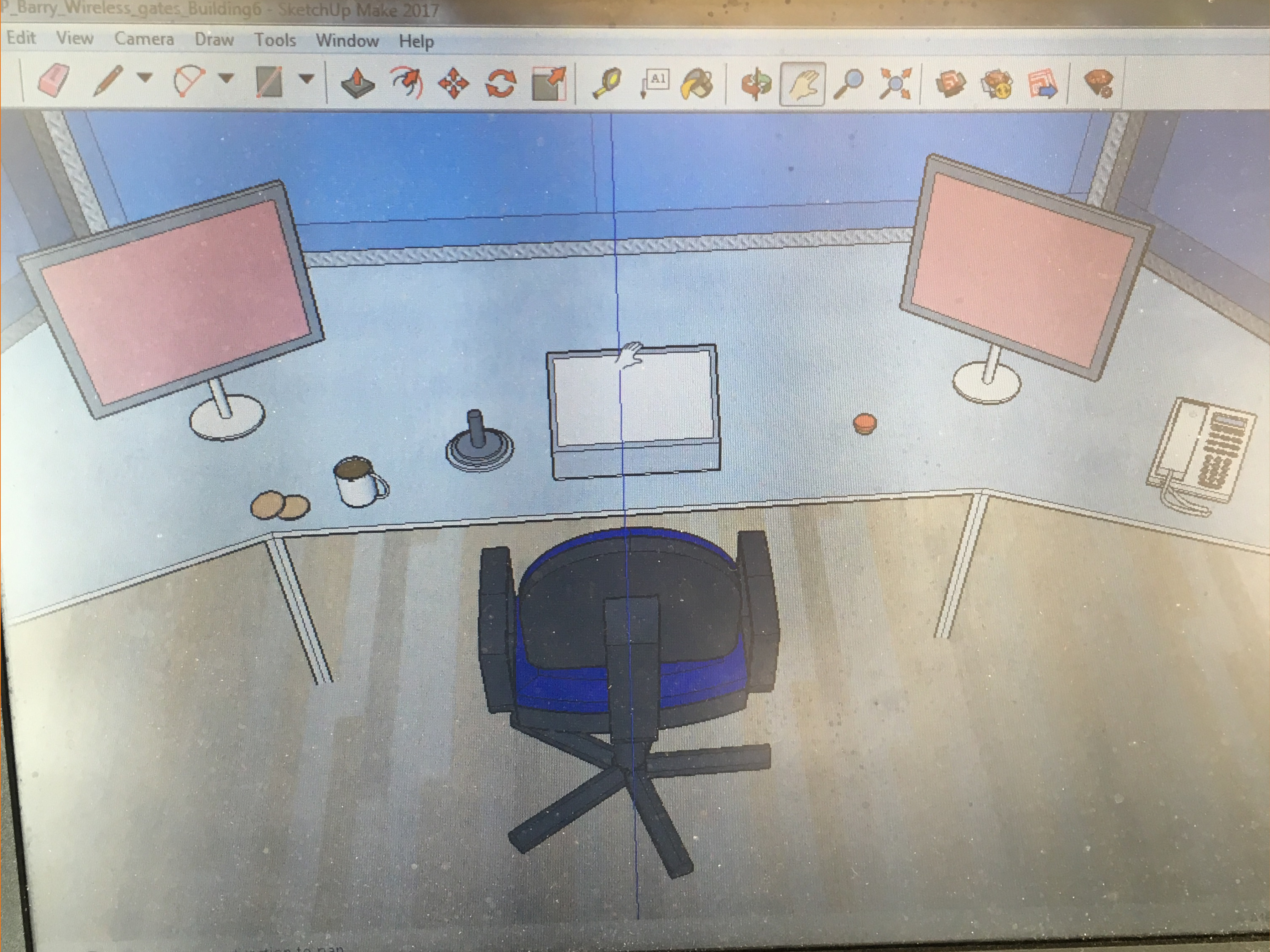

This project included a few mock-up’s of displays and desks before a standing, dual HMI solution was chosen. Sketchup was used to quickly prototype ideas
